Light Weight 19mm 640*512 Thermal Drone Camera with AI Tracking Objects.
Features
- 640*512 19mm 12µm
- 8x Digital Zoom
- 1080p Video
- Quick Release Connector
- 3-Axis FOC Gimbal
- Light Weight Small Size
Description

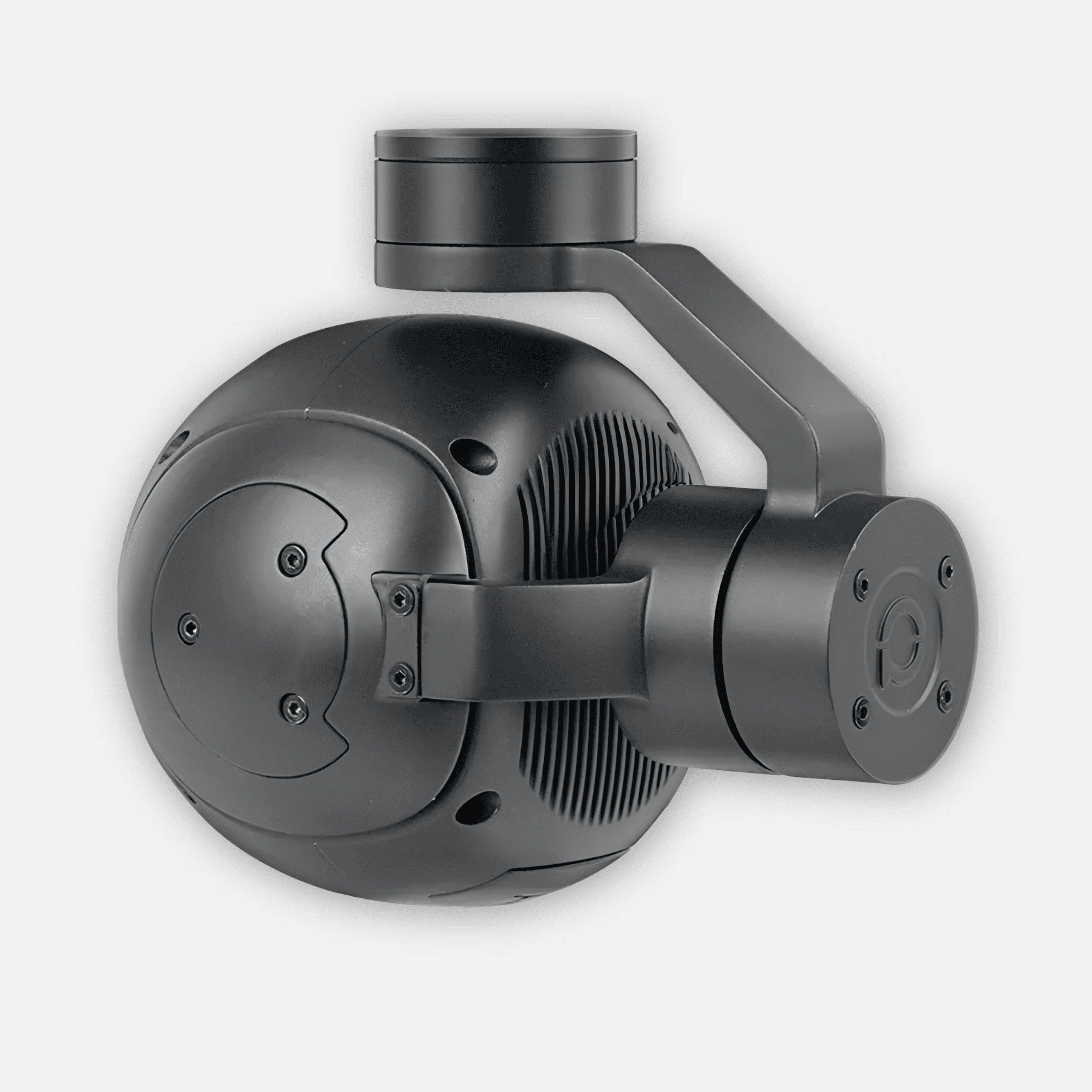

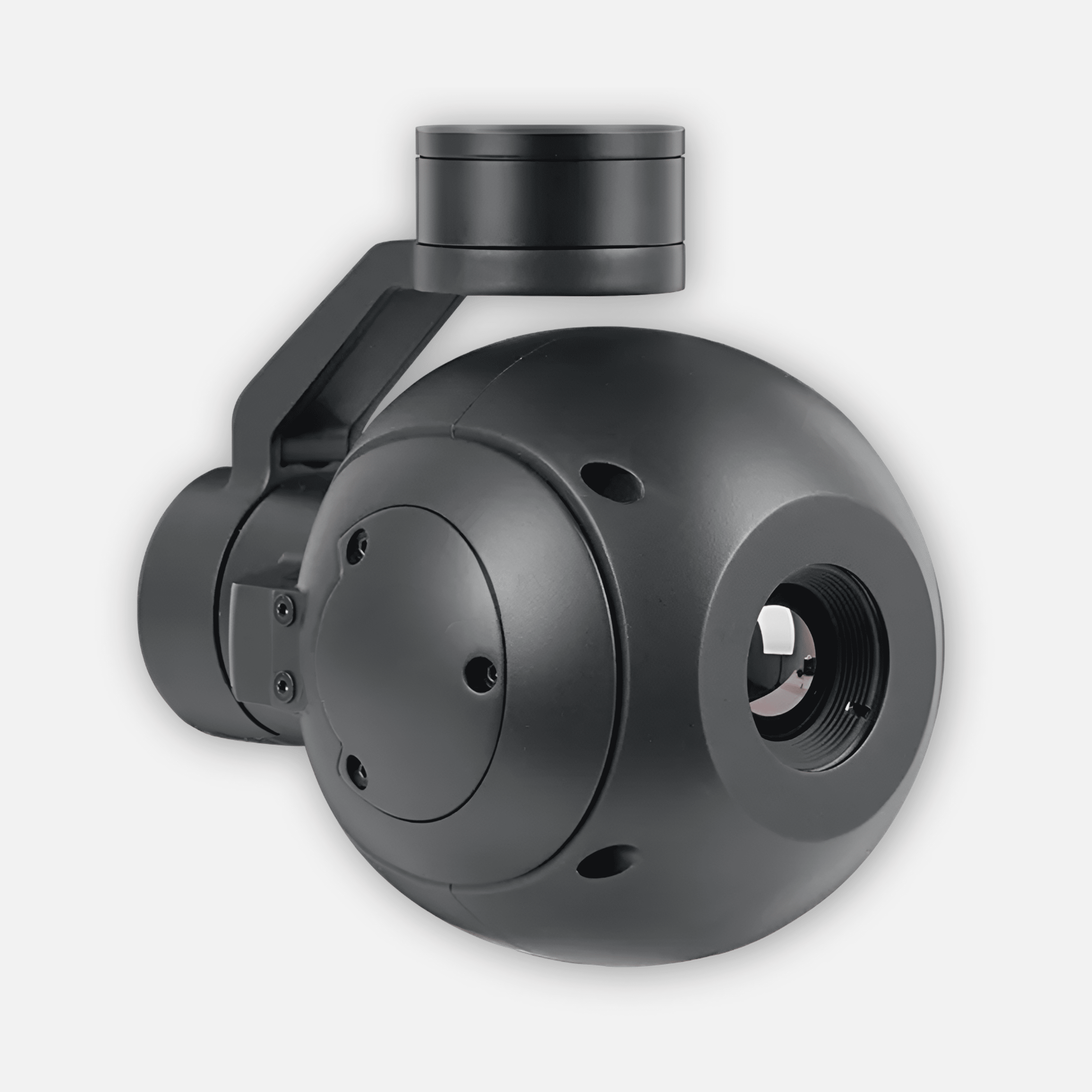

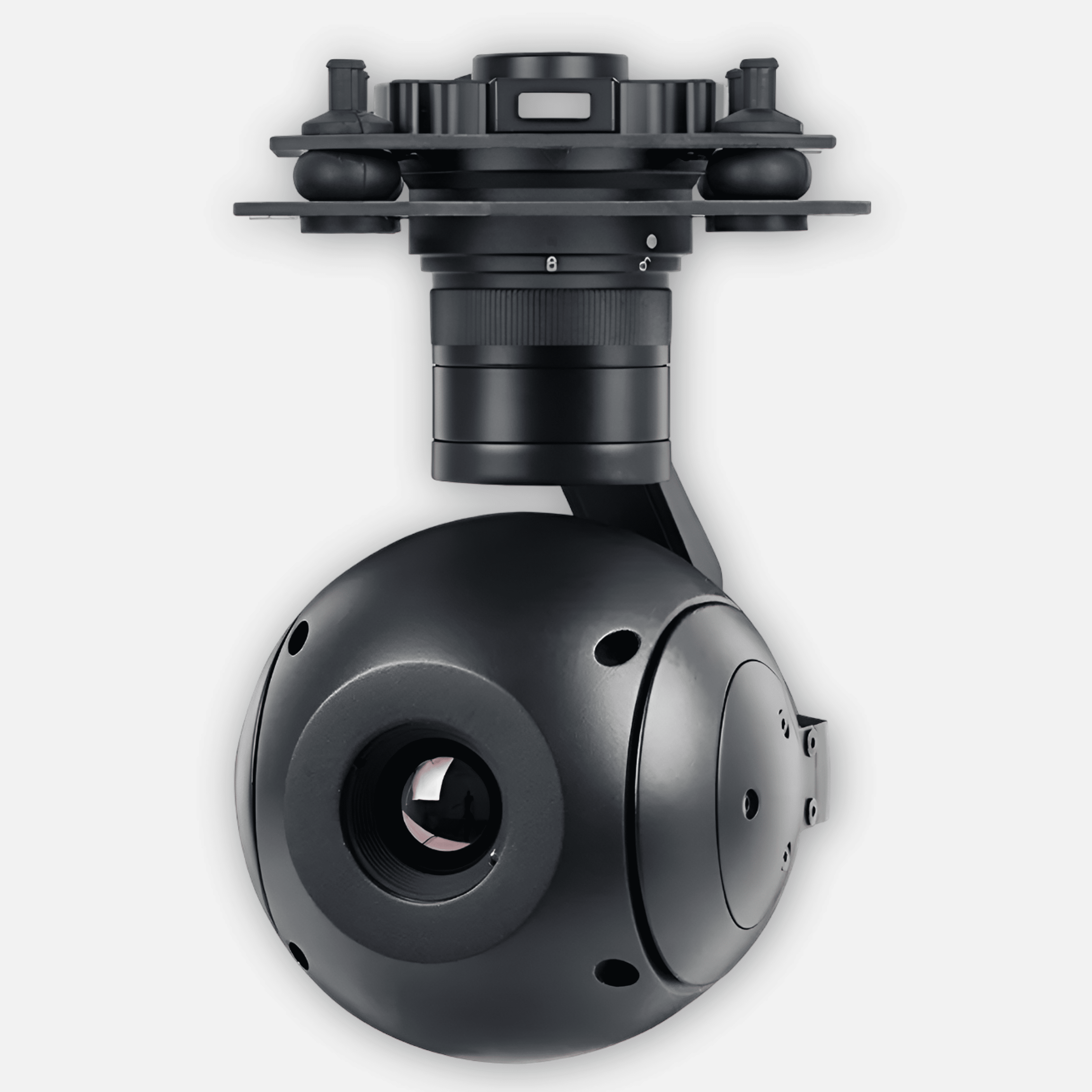

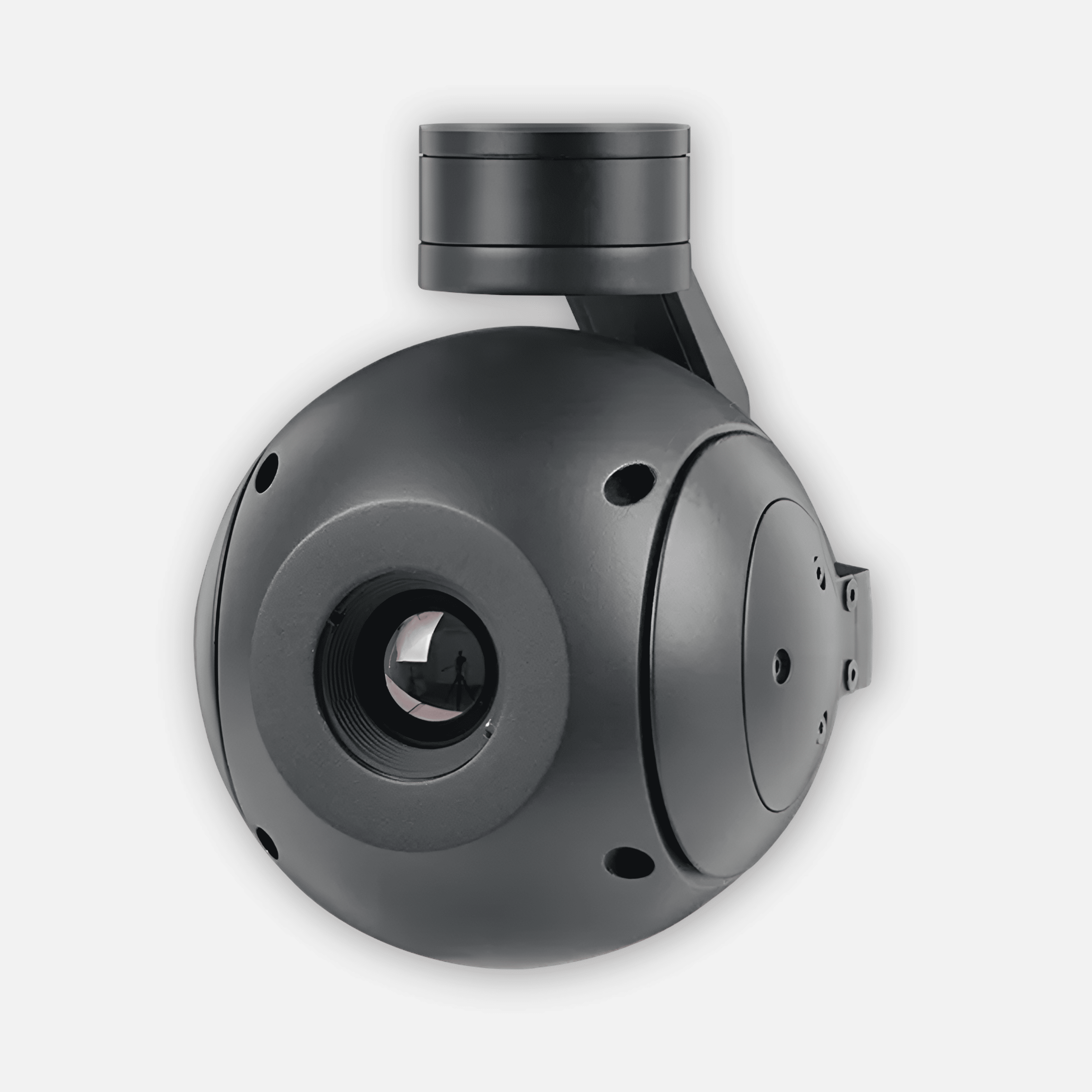

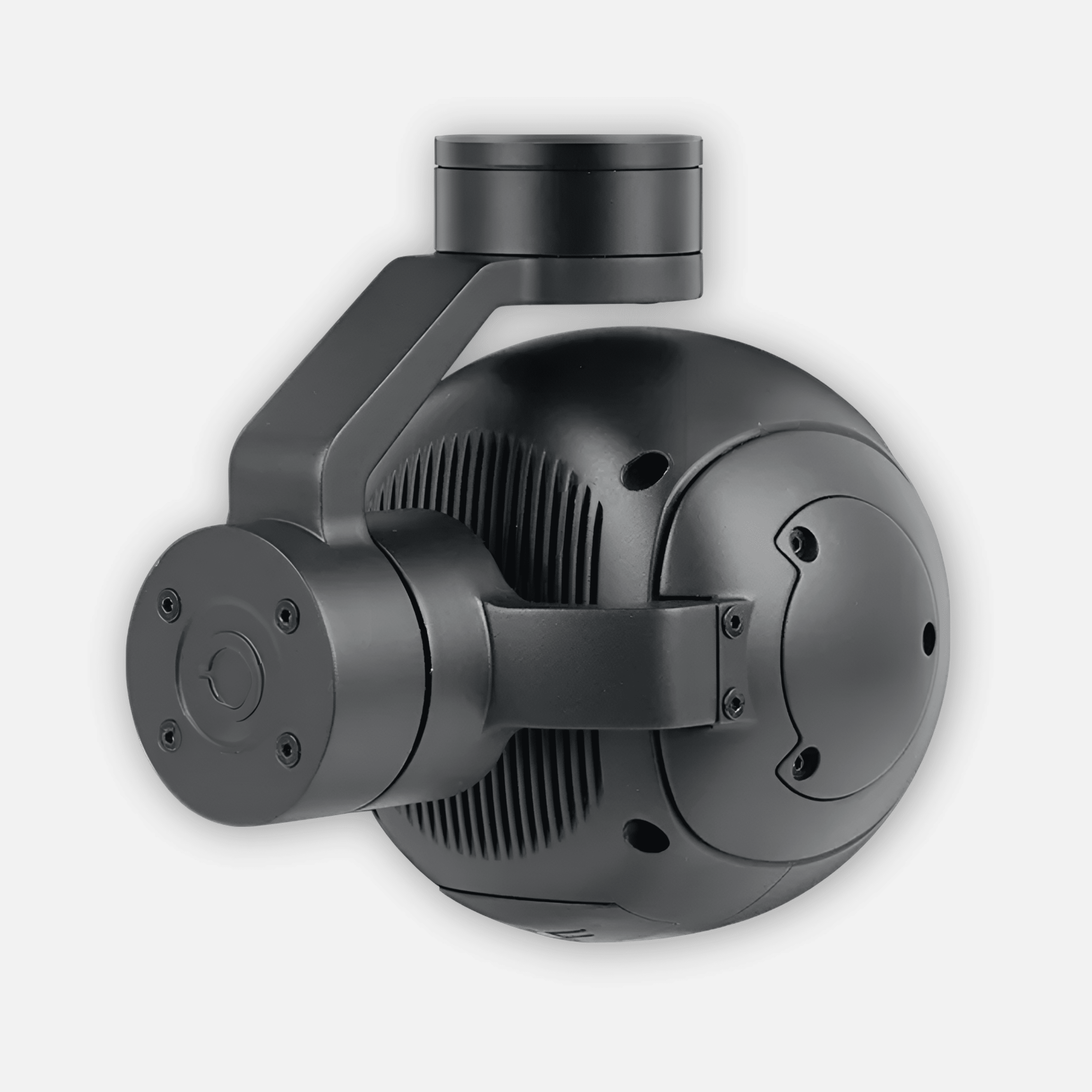

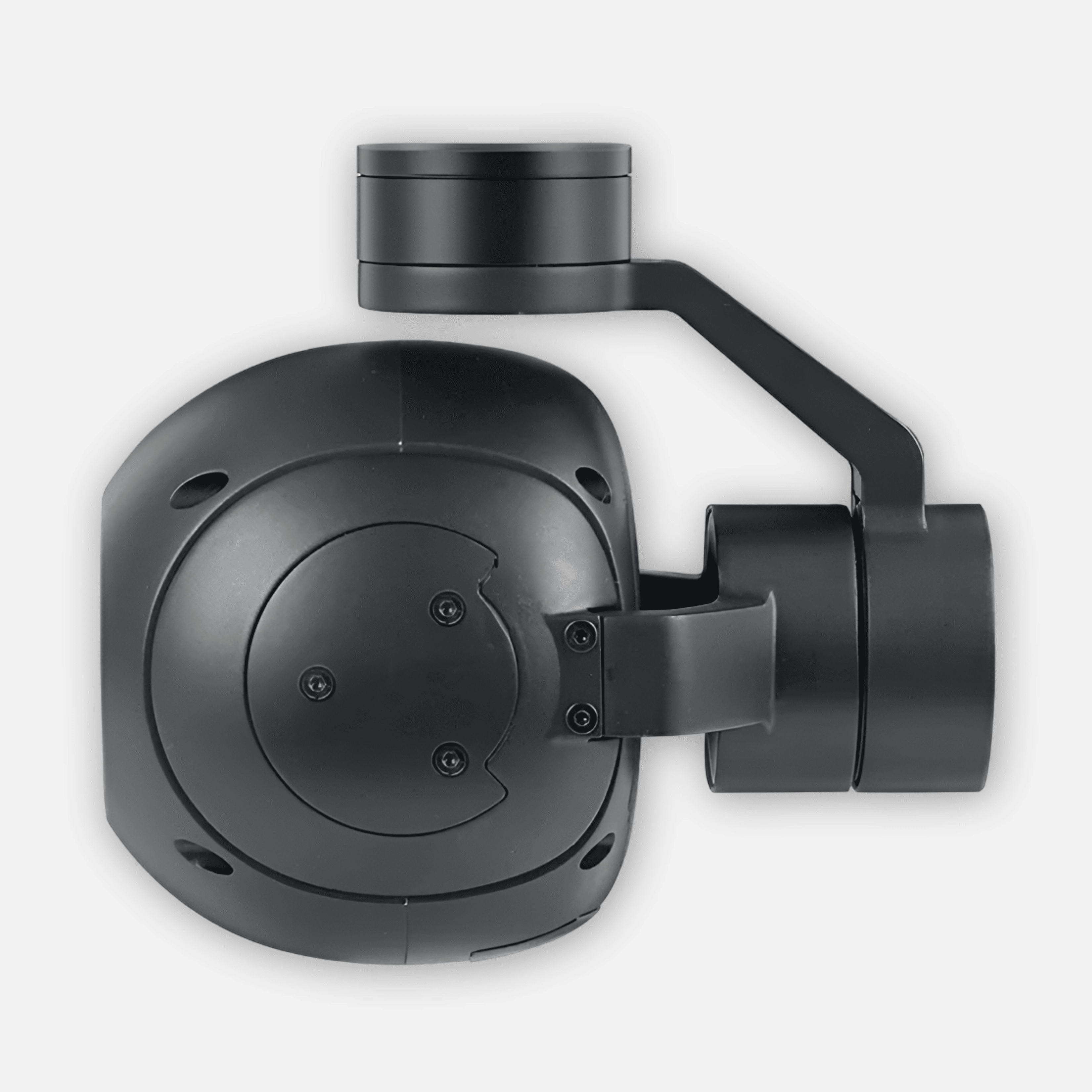

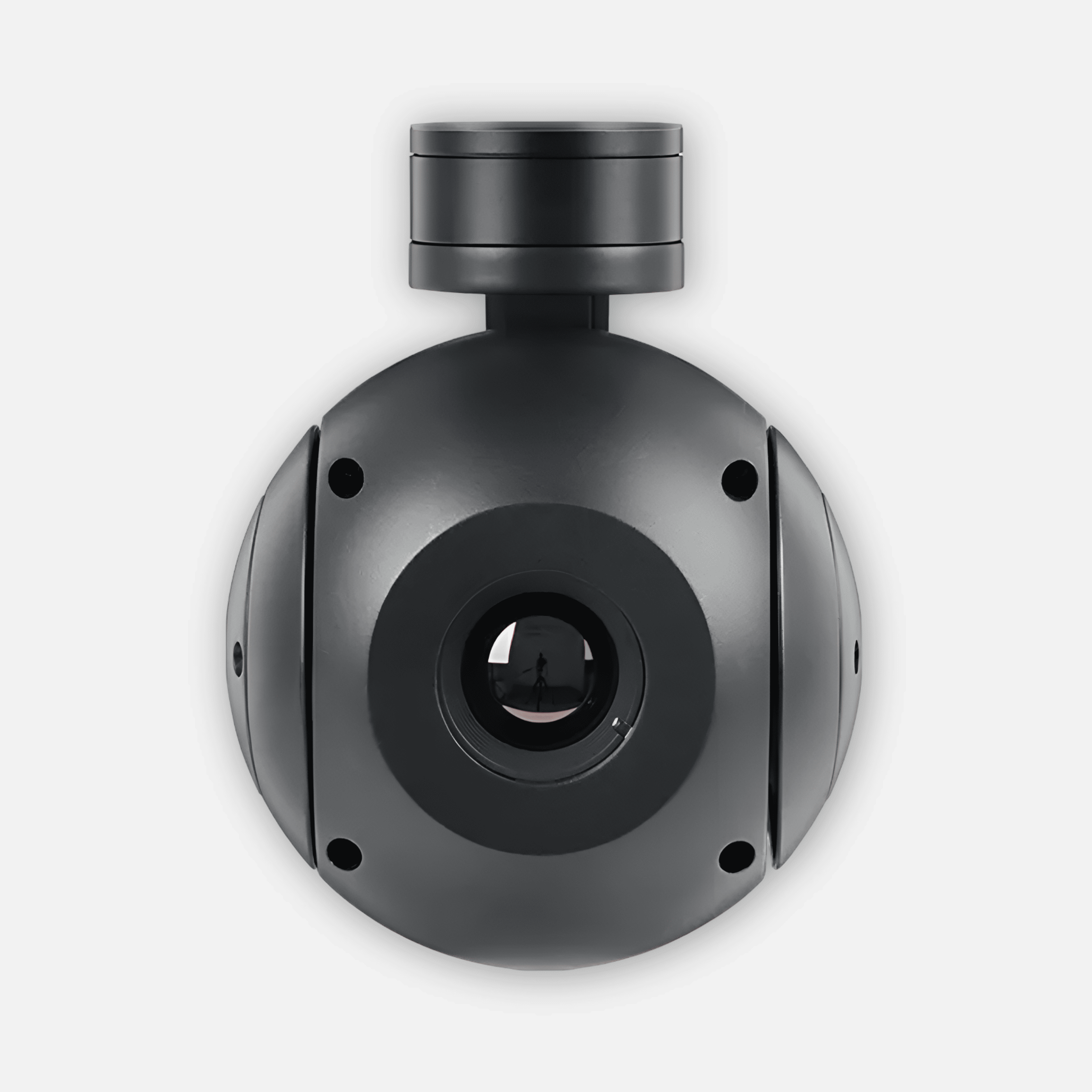

HUB-E lightweight Drone Camera is a high-precision 3-axis stabilized payload camera with a 19mm uncooled VOx IR thermal cmaera. The resolution is 640×512 anf pixel size of 12μm.
Camera supports thermal image multi-color palette switching, photo and video onboard recording, AI detection of vehicles & human and stable target tracking, real time video streaming (1080p/720p optional). The OSD can display the heading and pitch angle, electronic magnification, camera and video status and tracking frame. It supports Geo-tagging function, when there is GPS and time-related protocol input, the OSD can also display GPS and time. When taking pictures, the photo attributes have shooting time and GPS information.
This Camera is widely used in industrial drone applications such as surveillance, search & rescue and inspection.
The highlight of HUB-E Drone Camer is integrated with Al object identification and tracking module, which can realize car and human automatic recognition and tracking by choosing the corresponding tracking mode.
Specification
Hardware Parameter
Working voltage
16V
Input Voltage
4S ~ 6S (14.8V~25.2V)
Output voltage
5V (connect with PWM)
Dynamic Current
400~1000mA @ 16V
Working environment temp.
-20℃ ~ +60℃
Output micro
HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage
SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo / Video storage format
JPG(1920*1080), MP4 (1080P 30fps)
Card reading online
HTTP read pictures
Control method
PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version)
Geotagging
Support, display time and GPS coordinate in picture exis
Gimbal Specification
Angle scope of structure design
Pitch/Tilt: -45°～103°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design
Pitch/Tilt: -40°～100°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle
Pitch/Roll: ±0.02°, Yaw：±0.02°
IR Camera Object Tracking
Update rate of deviation pixel
30Hz
Output delay of deviation pixel
<30ms
Minimum object contrast
5%
SNR
4
Minimum / Maximum object size
16*16 / 256*256 pixel
Tracking speed
±48 pixel/frame
Object memory time
100 frames
IR Camera AI Performance
Targets type
Car and human
Simultaneous detection quantit
≥ 10 targets
Min contrast ratio
5%
Min target size
5×5 pixel
Car detection rate
≥85%
