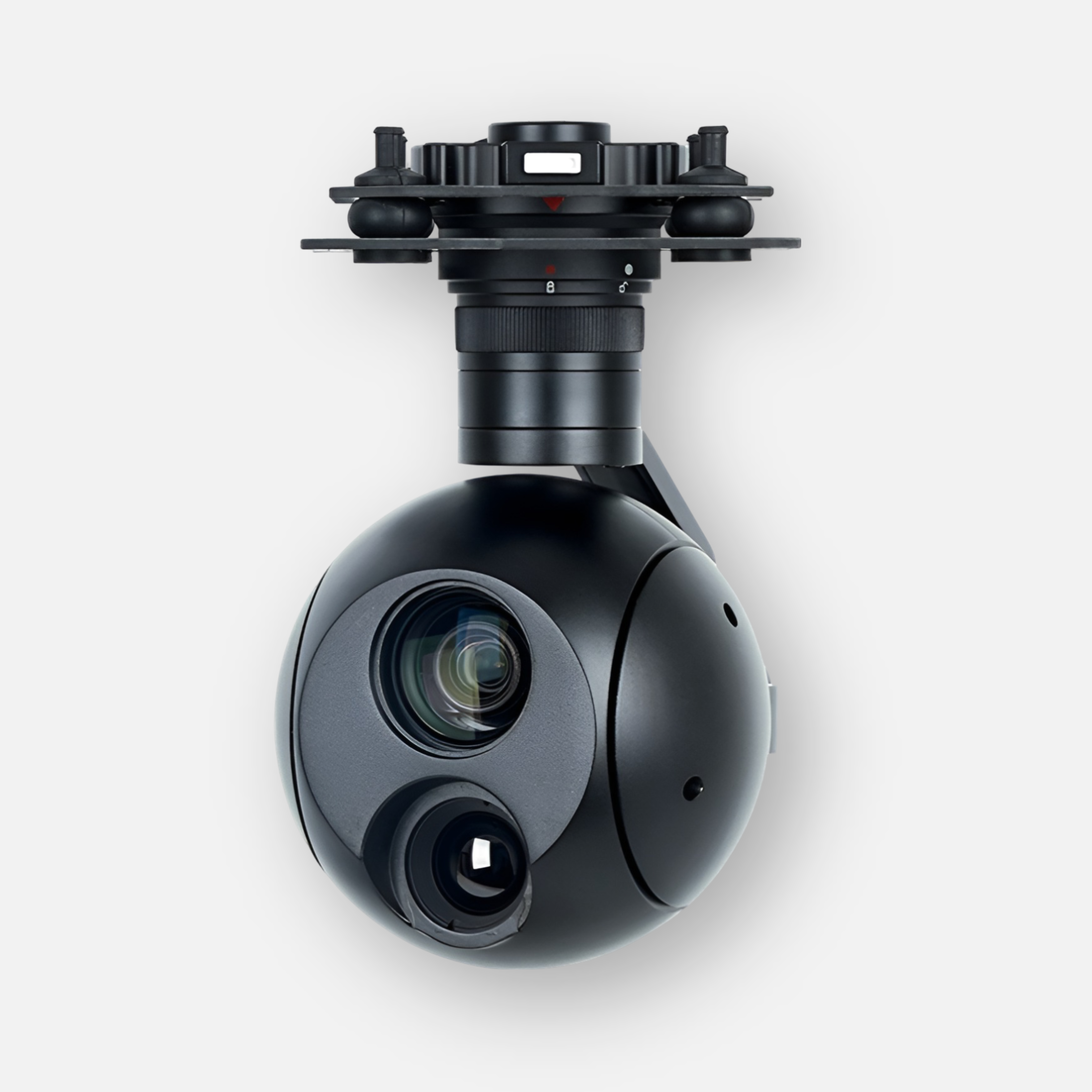

10x Dual Sensor Light Weight AI Tracking Drone Camera
Features
- 5.13MP Effective Pixel
- 10x Optical Zoom, 32x Digital Zoom.
- 640*512 19mm Lens.
- AI Object Detection.
- Quick release connector.
- 539g Small Volume
- 3-Axis FOC Gimbal
- 1080P Video
Description
HUB-E Drone Camer is a dual-sensor gimbal camera featuring 539g light net weight, small volume and compact structure, which integrates a 10x optical zoom camera and a 19mm lens 640*512 thermal camera. It with 3-axis high-precision gimbal which has advantages of better metal texture, anti-interference and better heat dissipation. It is integrated with AI object identification and tracking module, which can realize car and human automatic recognition and tracking, It widely used in UAV industries of inspection, surveillance, search and rescue and other industrial applications.
The highlight of HUB-E Drone Camer is integrated with Al object identification and tracking module, which can realize car and human automatic recognition and tracking by choosing the corresponding tracking mode.
Specification
Hardware Parameter
Working voltage
16V
Input Voltage
4S ~ 6S (14.8V~25.2V)
Output voltage
5V (connect with PWM)
Dynamic Current
700~1250mA @ 16V
Power consumption
11.2W, Max 20W
Working environment temp.
-20℃ ~ +50℃
Output
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265)
Local-Storage
SD card (Up to 256G,class 10, FAT32)
Photo Storage Format
JPG(1920*1080)
Video Storage Format
MP4 (1080P 30fps)
Control Method
PWM / TTL / S.BUS / TCP / UDP
Gimbal Specification
Angle scope of structure design
Pitch/Tilt: -50°～135°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design
Pitch/Tilt: -45°～130°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle
Pitch/Roll/Yaw: ±0.02°
EO Camera Specification
Update rate of deviation pixel
30Hz
Output delay of deviation pixel
<30ms
Minimum object contrast
5%
SNR
4
Minimum / Maximum object size
16*16 / 256*256 pixel
Tracking speed
±48 pixel/frame
Object memory time
100 frames
EO/IR Object Tracking
Update rate of deviation pixel
30Hz
Output delay of deviation pixel
<30ms
Minimum object contrast
5%
SNR
4
Minimum / Maximum object size
16*16 / 256*256 pixel
Tracking speed
±48 pixel/frame
Object memory time
100 frames
EO/IR Object Tracking
Targets type
Car and human
Simultaneous detection quantit
≥ 10 targets
Min contrast ratio
5%
Min target size
5×5 pixel
Car detection rate
≥85%
